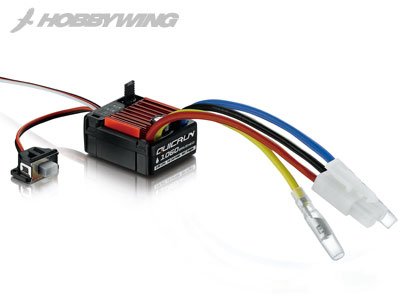

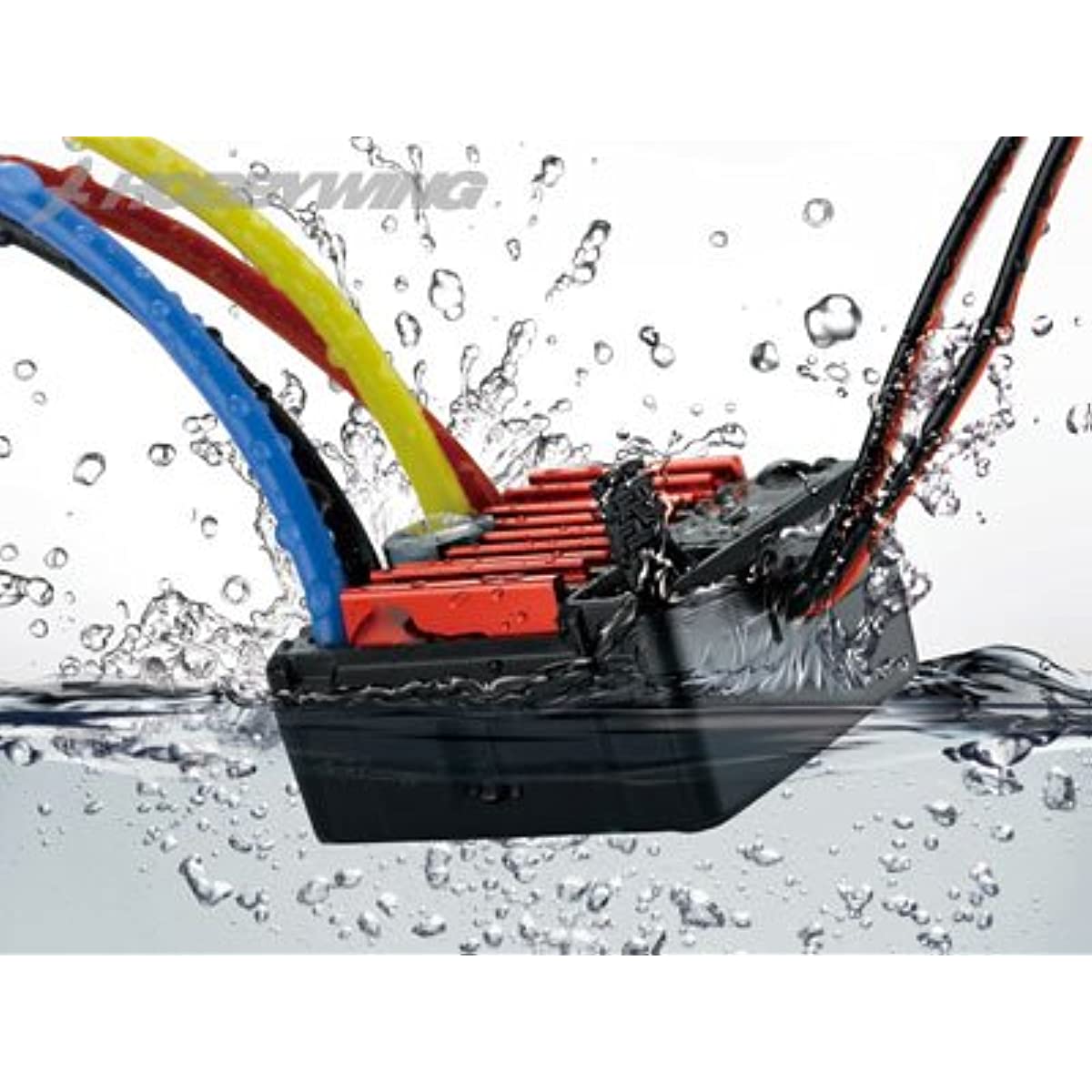

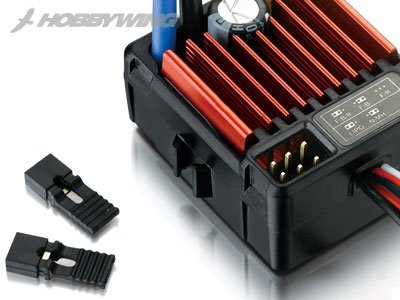

HOBBYWING QuicRUN-WP-1060-Brushed BEC Built-in 3A6V for 110
Remote & App Controlled Vehicle Parts. JAN: 4571341992720
Product introduction Specifications: Forward Output: Continuous 60A / Max 360A / Backward Output: Continuous 30A / Max 180A / Battery LiPo: 2-3 cells, NiMh: 5-9 cells, BEC Output: 6V/3A (switch mode); Value: 0.001Ω; Reverse Resistance Value: 0.002Ω; Compatible Brush Motor: 【Lipo : 2 cells, NiMh: 6 cells: 540/550 size up to 12T RPM<30000 @ 7.2V (LiPo: 3 cells, NiMh: 9 cells ) 540/550 size up to 18T RPM<20000 @7.2V; Compatible models: 10 touring cars, M chassis, Buggy, Monster, Truggy, Crawler; Size: 1.4 x 1.3 x 0.7 inches (36.5 x 32 x 18 mm); Weight: 1.3 oz (39 g); PWM frequency: 1 KHz; Driving mode: Forward/Backward; Brake: Forward/Backward; Built-in BEC type safety warning In accordance with the HOBBYWING warranty regulation, we will replace it with new replacement if there is a stock for initial operation within 90 days.Please promptly check the product operation after purchase.If you don't have a receipt (statement) at the time of purchase or have been over 90 days, we will repair. Even if the product is within 90 days of purchase, the product will not be covered under the warranty. If installed in an inappropriate manner. In extreme operating environments or overpower to apply load to the ESC (FET breakage, etc.) When used beyond the eligible voltage When working on internal electronic circuits such as soldering.If the receiver cable or switch cord is damaged or modified. unproper disassembly and modification.If moisture or liquid gets into the internal substrate with submersion, cleaner fluid, or fuel.If foreign objects enter the ESC or are dirty with sand or debris.If you connect the battery to the positive or negative or ESC If the HOBBYWING serial number is lost or not the serial number of our distribution products. Our company may change without prior notice and only valid in Japan. Please note that we do not control the proper use of our pro ducts and we will not be responsible for any damage to our products or other merchandise
Product introduction Specifications: Forward Output: Continuous 60A / Max 360A / Backward Output: Continuous 30A / Max 180A / Battery LiPo: 2-3 cells, NiMh: 5-9 cells, BEC Output: 6V/3A (switch mode); Value: 0.001Ω; Reverse Resistance Value: 0.002Ω; Compatible Brush Motor: 【Lipo : 2 cells, NiMh: 6 cells: 540/550 size up to 12T RPM<30000 @ 7.2V (LiPo: 3 cells, NiMh: 9 cells ) 540/550 size up to 18T RPM<20000 @7.2V; Compatible models: 10 touring cars, M chassis, Buggy, Monster, Truggy, Crawler; Size: 1.4 x 1.3 x 0.7 inches (36.5 x 32 x 18 mm); Weight: 1.3 oz (39 g); PWM frequency: 1 KHz; Driving mode: Forward/Backward; Brake: Forward/Backward; Built-in BEC type safety warning In accordance with the HOBBYWING warranty regulation, we will replace it with new replacement if there is a stock for initial operation within 90 days.Please promptly check the product operation after purchase.If you don't have a receipt (statement) at the time of purchase or have been over 90 days, we will repair. Even if the product is within 90 days of purchase, the product will not be covered under the warranty. If installed in an inappropriate manner. In extreme operating environments or overpower to apply load to the ESC (FET breakage, etc.) When used beyond the eligible voltage When working on internal electronic circuits such as soldering.If the receiver cable or switch cord is damaged or modified. unproper disassembly and modification.If moisture or liquid gets into the internal substrate with submersion, cleaner fluid, or fuel.If foreign objects enter the ESC or are dirty with sand or debris.If you connect the battery to the positive or negative or ESC If the HOBBYWING serial number is lost or not the serial number of our distribution products. Our company may change without prior notice and only valid in Japan. Please note that we do not control the proper use of our pro ducts and we will not be responsible for any damage to our products or other merchandise
